Z: Panzeri Canopy, Recessed Mount [XM9201-01]

Recessed canopy for clean ceiling sight lines for mains voltage pendants or 24v (requires power supply, not included).

Suitable for 24V fixtures: remote driver 24V needed.

Mains voltage by default.

White Finish.

Triac Dimmable.

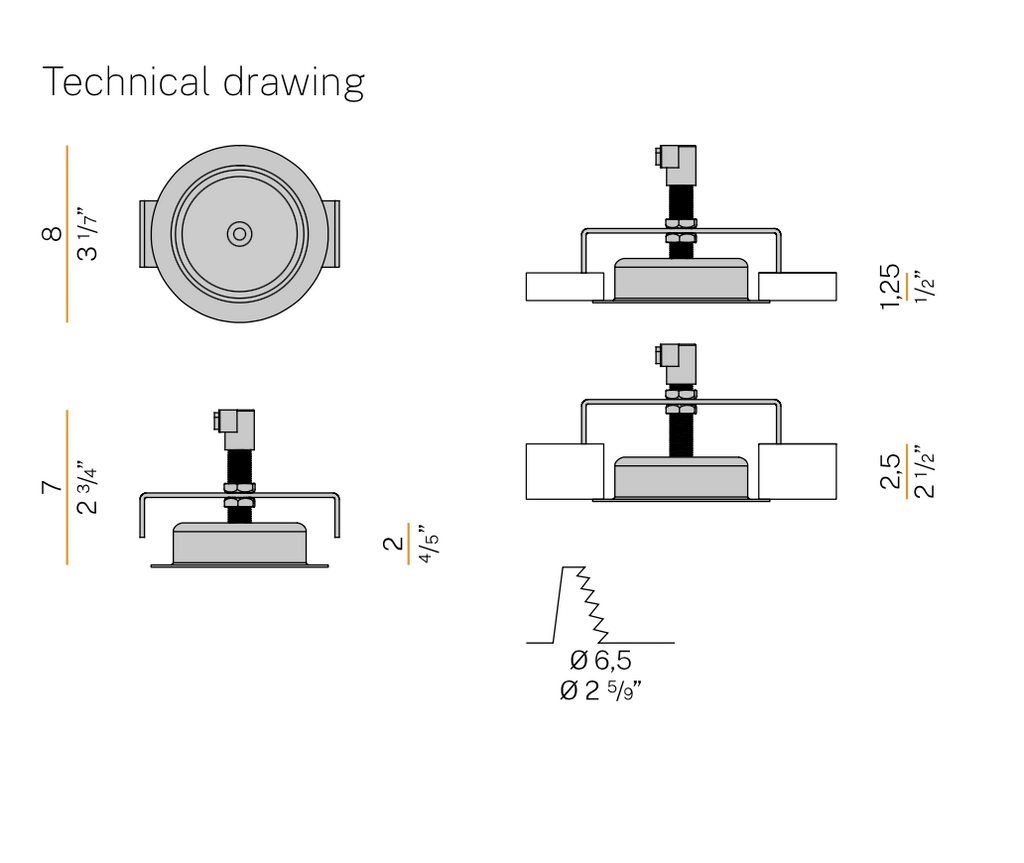

Dimensions:

• 8 cm ø x 2 cm Deep (inside the ceiling) x 7 cm H + 50 mm Depth
• Min 130 mm Over All Depth
• Min 12.5 mm Plaster Board Depth / Max 25 mm Plaster Board Depth
• Cut Out: 65 mm ø

Weight:

• 0.13 kg

Finish:

• White

Good to note:

• Plaster Board Depth: Min 12.5 mm / Max 25 mm
• The canopy is recessed into the ceiling, not flush w the surface (2 cm deep)

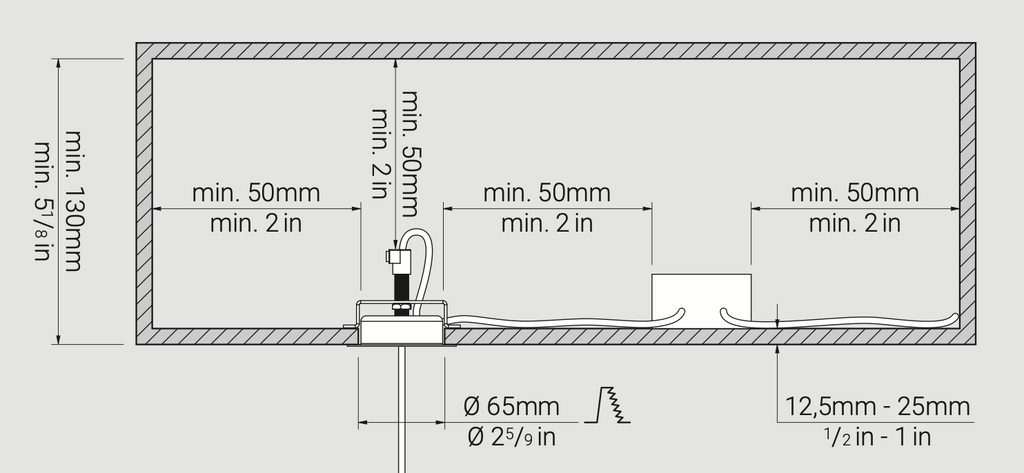

• Requires min 50 mm above and to the sides for air circulation
• Triac Dimmable
